| Business Type | Manufacturer, Supplier |
| Type | Conveyor Belt |
| Material | C - 1045,C - 1050 High Carbon Steel,Low Carbon Galvanised Steel,Stainless Steel 304 And 316 |
| Application | Food Processing,Logistics,And Assembly Lines |
| Click to view more | |
Product Details
Belt Width
50mm To 3500mm
Packaging
Roll
Belt Speed
1m/min To 25m/min
Open Size
1"x1", 1/2"x1", 1/2"x1/2"
Temperature Range
-30 To 700 Degrees Celsius
Surface Texture
Honeycomb Pattern

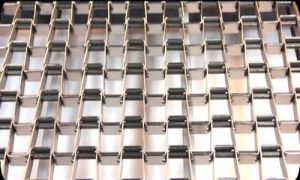

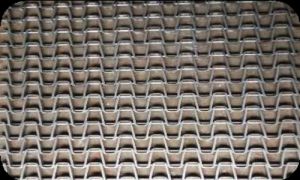

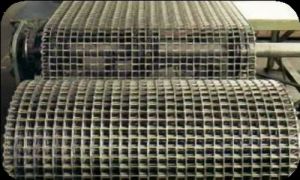

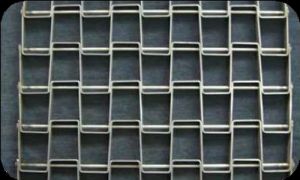

Flat wire conveyor belts also known as Honeycomb belt, constructed of cross rods and flat metal strips, can provide an open mesh with flat surface, endless splicing, easy air circulation, excellent fluid drainage as well as ease of cleaning. Meanwhile, they are easy to maintain just replacing the section that is damaged or worn down. We also offer in double strip Honeycomb belt for Heavy duty purpose.
Two styles of belt edges:
The selvages the flat wire conveyor belts are available in clinched edge and welded edge as shown in the picture:
FEATURES:
- Large open area for excellent air circulation.
- Optional side plates, reinforcing links and flights.
- Strong edge avoids snagging or catching even there are conveyor protrusions.
- Low maintenance.
- Suitable for friction or sprocket drive.
- Anti-slipping and last for years if used well.
- Durable structure prevents belt from deforming under heavy loads.
Specification
The description of flat wire conveyor belts is followed by its load capacity. Normally, there are standard duty belts and heavy duty belts for our customer to choose from according to their different needs. The standard duty type is sufficient for most applications and heavy duty type is ideal for heavy product conveying and some tougher conditions.
As your request, radius flat wire conveyor belts can also be supplied with right and left turn up to 180 degrees and reinforcing links to strengthen the outside edges of the belt. Its turning ability makes the belt capable to operate in limited space without obstacles and troublesome transfers.
