| Business Type | Manufacturer, Supplier |
| Material | Stainless Steel, Aisi 304 Or Aisi 316 |
| Round Wire Spirals | Diameter 0.80 to 5.00mm |
| Flat Wire Spirals | Cross 1.2 × 0.7mm to 6 × 3mm |
| Click to view more | |
Product Details
Width
up to 5300mm
Cross Bars
Diameter 1.40 to 8mm
Cross Bar Pitch
6.0 to 52.0mm
Temperature Range
-196°C to +275°C
Edges
Traditional Fabricated & Welded Ends, Chain Link End U Shaped, Chain Link End, Chain Link End With Edge Plates

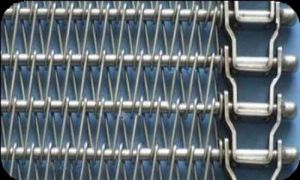

Radius conveyor belt also known balanced wave belt because it composed of balanced weaved spiral mesh, straight cross rods and chain links on both sides. They are suitable for a wide range of applications, constructions and process conditions throughout the world. Radius belts offer a smooth continuous product flow running dependably year after year without damaging fragile and delicate products.

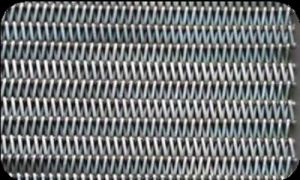

Two different wires - round & flat
- Two types of spiral wire can be provided: round wire and flat wire as shown in the
Features:
- Stable design for smoothly, dependably and gentle movements.
- Money saving by securing the quality of products and reducing waste. Close-structurestructure and ideal for high tensile load.
- Suitable for radius system, spiral, curved or straight conveyors. Wide temperature range
- from -196°C to +275°C.
- Complying with FDA standards.
Applications:
- Food cryogenic cooling and freezing. :
- Vegetable blanching. Dough proofing.
- Drying installations. Product lifting conveyors.
- Baking or pasteurizing systems. Conveyor machines.
- Ovens, frostier, annealing furnaces.
- Frying, refrigeration and cleaning facilities
